Products

Clamping Components

Clamps, studs and serrated blocks built for T-slot beds on CNC, VMC and conventional machines. Each piece is hardened, precision-ground and inspected before dispatch — engineered to hold your workpiece steady through heavy roughing cuts and finish passes alike.

Flat Clamp

Plain flat clamp for T-slot workholding. Hardened steel strap with machined slot for stud clearance. Reliable hold-down for milling, drilling and grinding.

Serrated Clamp

Serrated-face clamp for high-grip T-slot clamping. Cross-hatched teeth bite into step blocks and support surfaces — resists lateral slip under heavy loads.

Serrated Block

Step block with serrated face — pairs with the Serrated Clamp for a positive anti-slip connection at the support end. Multiple height positions for setup range.

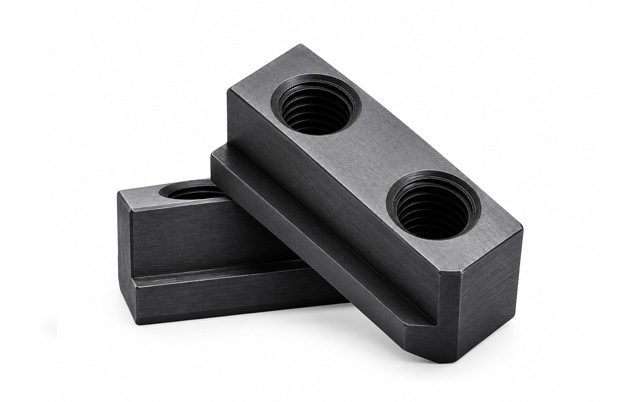

T Nut – Chuck Soft Jaws

T-nut for chuck jaw mounting on CNC and conventional lathes. Ground bearing face seats flush in chuck body T-slots. Hardened for repeated jaw changes.

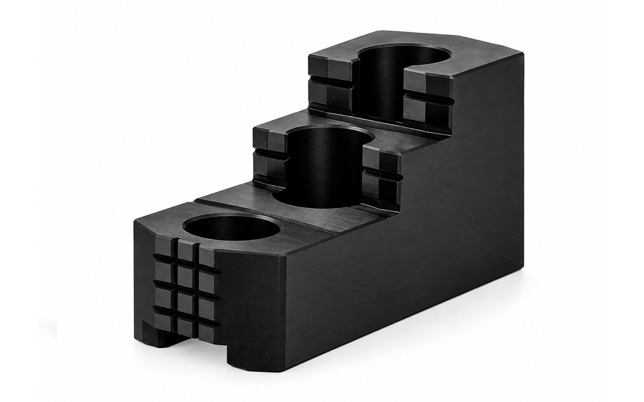

Hard Jaws

Pre-hardened chuck jaws for CNC lathes. Ground gripping surfaces for consistent, repeatable clamping on raw stock and rough-machined components. 3-jaw sets.

CNC Soft Jaws

CNC soft jaws for power chucks — compatible with Samchully, Airtech, GMT, Kitagawa and other brands. Bore to size for concentric, low-mark gripping.

Fixture Accessories

Nuts, studs, jaws and washers that complete your workholding setup. Available in standard IS and DIN thread sizes from M4 to M48 with ground contact faces for flush, repeatable seating. Custom lengths, threads and finishes manufactured to drawing.

T Slot Nut

Hardened T-slot nut for CNC and VMC fixture setups. Slides into standard T-slot channels for secure clamping stud mounting. 22 variants, M4 to M48.

Stud for T Slot

Shoulder stud designed to thread into T Slot Nuts. Pre-set in the T-slot channel for fast fixture changeovers on CNC and VMC machine beds. M8 to M36.

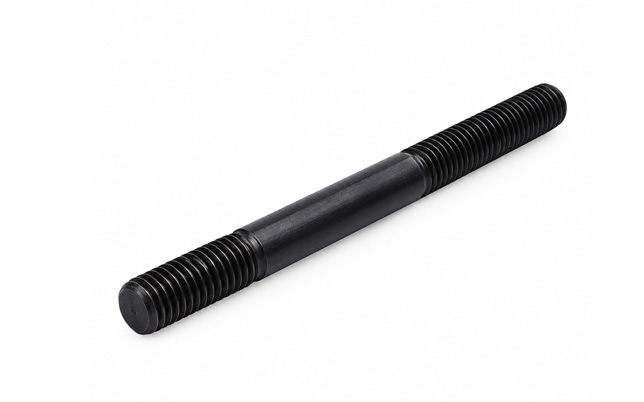

Clamping Stud

Threaded clamping stud for T-slot fixture setups. Hardened, rolled threads in M8–M36. Pairs with T Slot Nut and Flange Nut for secure workholding.

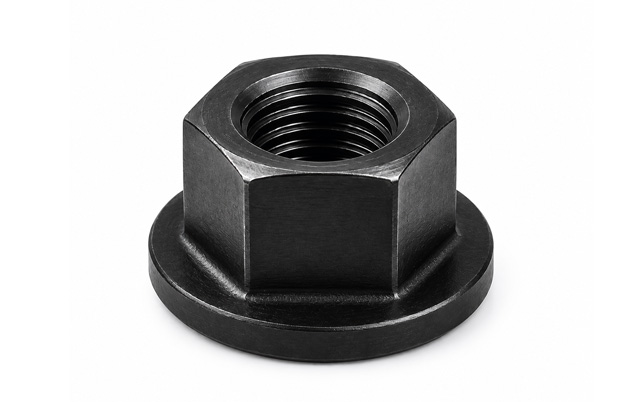

Flange Nut

Flanged hex nut with integrated washer face for clamping stud assemblies. Distributes load evenly across the clamp — no separate washer needed. M8 to M36.

Coupling Nut

Long-body hex coupling nut for joining two clamping studs end-to-end. Extends stud reach on tall workpieces or deep-set fixtures. Hardened, M6 to M24.

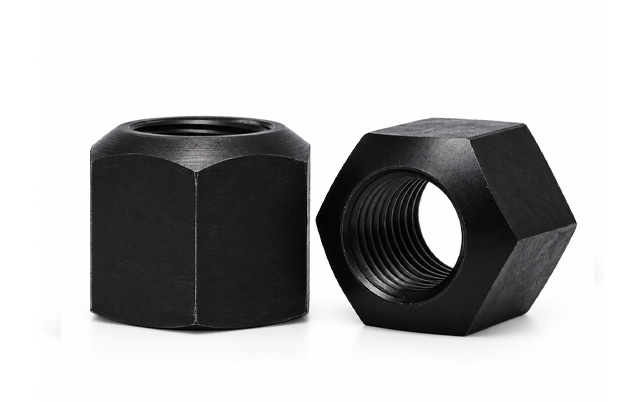

Long Nut

Extended-length hex nut for deep-thread engagement on clamping studs. Additional thread contact for heavy-duty setups. Hardened and tempered.

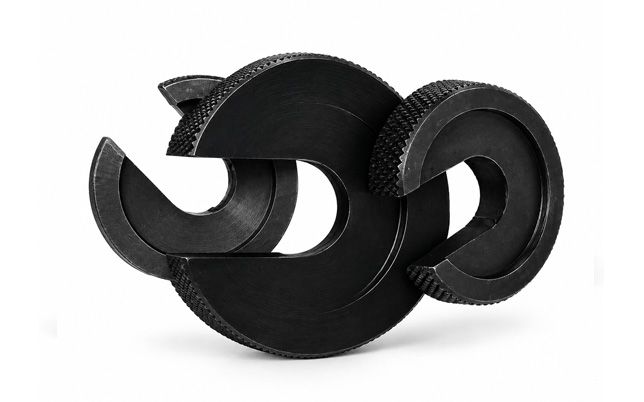

C Washer

Open-sided C washer for quick placement around clamping studs without disassembly. Case-hardened for wear resistance. Slides in from the side — saves setup time.

Plate Washer

Heavy-duty plate washer for clamping stud assemblies. Large bearing area distributes force across the clamp — prevents localised stress and surface dishing.

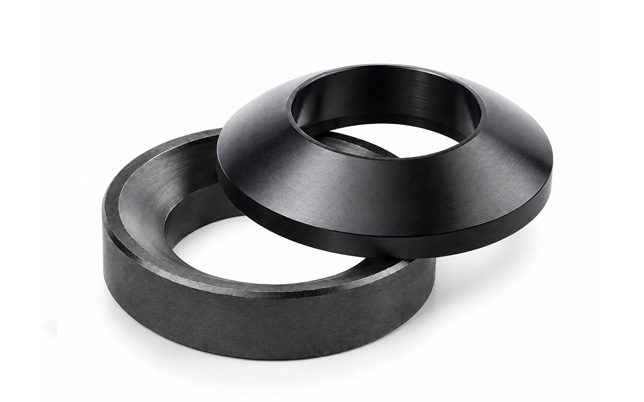

Spherical Washer with Conical Seat

Self-aligning spherical washer and conical seat set. Compensates for angular misalignment in clamping assemblies — ensures even load on angled or uneven surfaces. (161 → trim:) Self-aligning spherical washer and conical seat pair. Compensates for angular misalignment in clamping — ensures even load on angled surfaces.
